GblProperty Struct Reference

#include <gimbal_property.h>

Inheritance diagram for GblProperty:

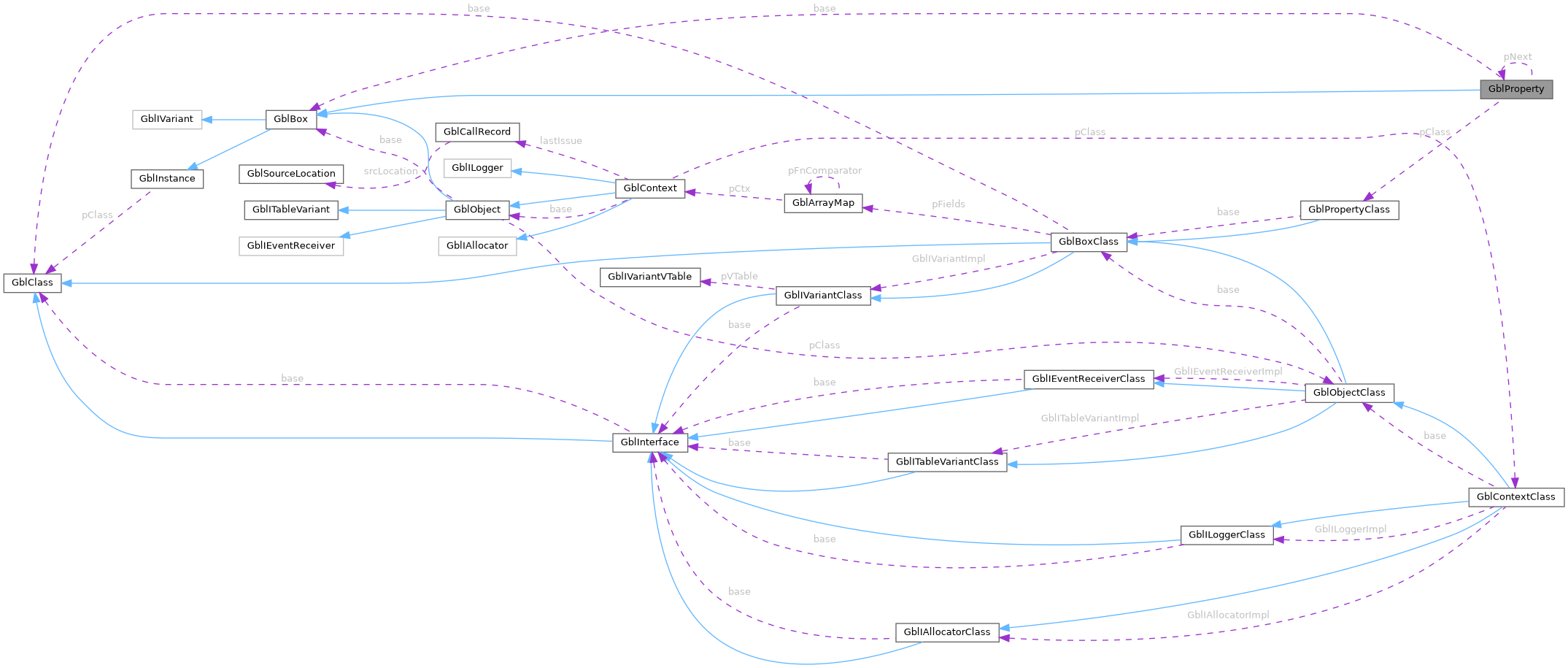

Collaboration diagram for GblProperty:

Data Fields
union {
GblPropertyClass *   pClass
GblBox   base
};
struct {
GblProperty *   pNext
GblType   objectType
}	private_
GblQuark	name
size_t	id
GblFlags	flags
GblType	valueType
Data Fields inherited from GblInstance
GblClass *	pClass

Additional Inherited Members
Related Symbols inherited from GblInstance
#define	GBL_TYPEOF(self)
#define	GBL_PRIVATE(cType, self)
#define	GBL_PUBLIC(cType, selfPriv)
#define	GBL_TYPECHECK(cType, self)
#define	GBL_CAST(cType, self)
#define	GBL_AS(cType, self)
#define	GBL_CLASSOF(cType, self)
#define	GBL_CLASSOF_AS(cType, self)
#define	GBL_VCALL(cType, method, ...)
#define	GBL_VCALL_DEFAULT(cType, method, ...)
GblBool	GblInstance_check (const GblInstance *pSelf, GblType toType)
GblInstance *	GblInstance_cast (GblInstance *pSelf, GblType toType)
GblInstance *	GblInstance_as (GblInstance *pSelf, GblType toType)
void *	GblInstance_private (const GblInstance *pSelf, GblType base)
GblInstance *	GblInstance_public (const void *pPriv, GblType base)
GblType	GblInstance_typeOf (const GblInstance *pSelf)
size_t	GblInstance_size (const GblInstance *pSelf)
size_t	GblInstance_privateSize (const GblInstance *pSelf)
size_t	GblInstance_totalSize (const GblInstance *pSelf)
GblClass *	GblInstance_class (const GblInstance *pSelf)
GBL_RESULT	GblInstance_swizzleClass (GblInstance *pSelf, GblClass *pClass)
GBL_RESULT	GblInstance_sinkClass (GblInstance *pSelf)
GBL_RESULT	GblInstance_floatClass (GblInstance *pSelf)

Detailed Description

Represents a string-indexed member of a GblObject.

GblProperty represents a single GblObject member which can be dynamically looked-up by a string key, passed to the Gblobject constructor, or which can be programmatically iterated over.

See also

GblPropertyClass

Definition at line 109 of file gimbal_property.h.

Field Documentation

pClass

GblPropertyClass* GblProperty::pClass

Pointer to class/vtable structure.

Definition at line 109 of file gimbal_property.h.

base

GblBox GblProperty::base

Inherited base instance structure.

Definition at line 109 of file gimbal_property.h.

pNext

GblProperty* GblProperty::pNext

Pointer to next property contained by the same type.

Definition at line 111 of file gimbal_property.h.

objectType

GblType GblProperty::objectType

UUID of the owning type.

Definition at line 112 of file gimbal_property.h.

name

GblQuark GblProperty::name

Interned string name of property.

Definition at line 114 of file gimbal_property.h.

id

size_t GblProperty::id

Integer ID of property.

Definition at line 115 of file gimbal_property.h.

flags

GblFlags GblProperty::flags

Combined flags of property.

Definition at line 116 of file gimbal_property.h.

valueType

GblType GblProperty::valueType

Type of the value represented by the property.

Definition at line 117 of file gimbal_property.h.

---

The documentation for this struct was generated from the following file:

• gimbal_property.h
